Applications: Insulation in jamb-crossbar constructions: Hospital in Erlenbach

Information in pdf format (1284 KB)
Kind of insulation: Jamb-crossbar construction
Construction: GLASKEIL GmbH & Co. KG
Contact: Thomas Fiedler,
VIP product: WACKER CERAMICS (Kempten) &
va-Q-tec AG (Würzburg)
Location: Hospital in Erlenbach / Main, Germany
Date of realization: September 2001
Funding: Bavarian State Ministry of Economics, Infrastructure, Transport and Technology

Description of the construction: A typical jamb-crossbar construction made of aluminium was installed. The total thickness of the facade element was limited to 32 mm. The vacuum-insulated elements were installed instead of 70 mm thick conventional insulation. The theoretical improvement in the U-value should be from 0.57 W/(m²K) to 0.22 W/(m²K) with an 18 mm thick VIP. Because of the thermal bridges at the edge of the element, the real U-value for this element size (about 1 m² with two VIPs measuring 0.5 m x 1.0 m) is 0.6 W/(m²K). It is advantageous that the elements can be manufactured in the factory so they can be installed like a window pane at the building site. The material of the spacer was varied between stainless steel and Purenit.

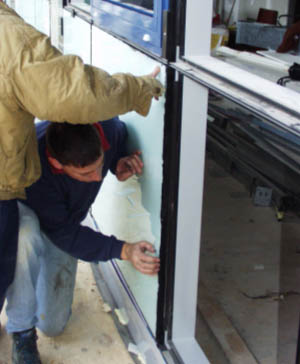

Figure 1: Photograph of the vacuum-insulated facade elements during installation.
Figure 2: Cross-section of a facade element. In some elements the glass was exchanged for 3 mm thick sheet aluminium.

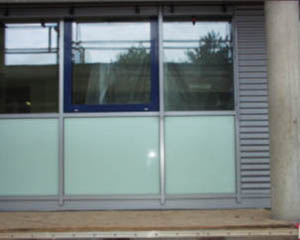

Figure 3: Outside view of the facade.
